Product description

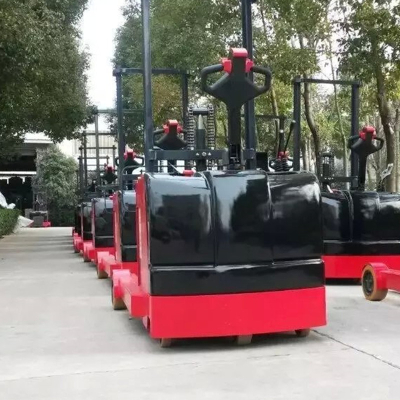

1.5t electric reach stacker
24V Electric reach stacker TFA Series rated Load Capacity: 1500kg, lift height: 3000mm; Max. lifting height is 5500mm.
1.Speed Limited for high position,to aviod the possibility of products' overturning when high speed in high position;
2.Curve safe control,the forklift will reduce the speed automatic when turning, to aviod the ejection of operator and products from the vehicle by the high speed;
3.Regenerative braking function to reduce the operation cost;
4.Safe cutoff valve,to protect the operator and goods in well condition;
5.Shock Absorption of Pedal,to ensure the comfortable of working and reduce the fatigue.
6, ISO9001, CE approved.
FAQ
Q: Are you a trader or manufacturer?
A: We are manufacture, we have our own factory.
Q: Why should i choose you?
A: Firstly, as a comprehensive forklift machinery manufacturers, we can offer you competitive price. In fact we have dealed with numbers of client friends. furthermore, our company has equipped with a group of diligent, honest and enterprising staff. So we are sure that we can make quick responseto your questions all the time. Actually, most problems can be solved within 10 hrs. lastly, we are a member of Trade Assurance service in alibaba.com. that is new service provided by alibaba, which can provides buyers with a number of trade safeguards protect buyers’ payment to suppliers, and to ensure suppliers fulfill their obligations regarding order delivery time and product quality.
Q: Which payment terms can we accept?
A: Normally we can work on L/C , T/T, Western Union and MoneyGram
Q: How long will our price be valid?
A: Basically, our price remains stable within 30days. And we only adjust our price on the two issues, i.e. the rate of USD to RMB and the vary of production price of the forklift.
Q:How can I get the after-sales service?
A: The global service network hasn’t been constructed, but you can contact with us if you have questions or need professional support, we will try to solve your problem in 24hrs, and arrange the delivery of the essential spare parts.
- Size: 1
- Place of Origin: China
- Brand Name: NOELIFT
- Model Number: TFA20
- Weight: 1500.000 kg
Product parameter
TFA- Electric reach stacker 24V
1 | Description | Electric reach stacker | |||||||
2 | Model | TFA10 -16 | TFA10 -25 | TFA10-30 | TFA10-35 | TFA15-25 | TFA15-30 | TFA20-16 | |
3 | Load capacity Kg | 1000 | 1000 | 1000 | 1000 | 1500 | 1500 | 2000 | |
4 | Load center mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
5 | Max. lifting height mm | 1600 | 2500 | 3000 | 3500 | 2500 | 3000 | 1600 | |
6 | Wheel type | Polyurethane solid tire | |||||||
7 | Mast forwarding length mm | 550 | 550 | 550 | 550 | 650 | 650 | 700 | |
8 | Fork size(LxW)mm | 1070*100 | 1070*100 | 1070*120 | |||||
9 | Fork spread mm | 220-680 | 220-680 | 260-680 | |||||
10 | Overall length(The pedal is closed) mm | 2290 | 2290 | 2290 | 2290 | 2375 | 2375 | 2460 | |
11 | Overall width mm | 1090 | 1090 | 1090 | 1090 | 1090 | 1090 | 1090 | |
12 | Overall height mast closed mm | 2140 | 1850 | 2100 | 2350 | 1850 | 2100 | 2140 | |
13 | Overall height fork raised(with backrest) mm | 2460 | 3360 | 3860 | 4360 | 3360 | 3860 | 2460 | |
14 | Outside turning radius mm | 1630 | 1630 | 1630 | 1630 | 1800 | 1800 | 1930 | |
15 | Front wheel to fork tip mm | 370 | 370 | 370 | 370 | 510 | 510 | 515 | |
16 | Max. walking speeds Km/h | 4.0/5.0 | 4.0/5.0 | 4.0/5.0 | 4.0/5.0 | 4.0/5.0 | 4.0/5.0 | 4.0/5.0 | |
17 | Min. intersecting aisle(1000*1000pallet)mm | 2590 | 2715 | 2840 | |||||
18 | Pedal length mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
19 | Grade abitity % | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | 5~8 | |
20 | Total weight( with battery) Kg | ~1800 | ~1840 | ~1860 | ~1880 | ~1860 | ~1880 | ~1970 | |
21 | Driving wheel mm | Φ215*75 | |||||||
22 | Front wheel mm | Φ267*114 | |||||||
23 | Balance wheel mm | Φ150*50 | |||||||
24 | Battery V/Ah | 24/210 | |||||||
25 | Charger V/A | 24/30 | |||||||
26 | Driving motor Kw | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |
27 | Lifting motor Kw | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | |
28 | Control system | American Curtis |
