- Size: 26.37
- Place of Origin: China
- Brand Name: NOELIFT
- Model Number: TCZ15
- Weight: 9710.000 kg
Product Application

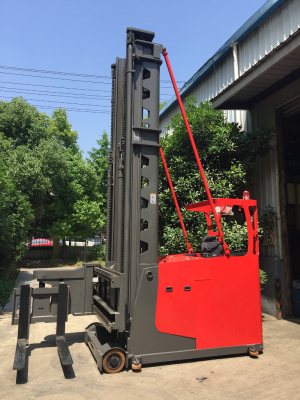

Noelift brand seated type 3 way electric pallet stacker. Load capacity 1500kg. Optional lift height: 3000-9500mm. Adavantages,
1. with US CURTIS controller, high work efficiency ensured.
2. brushless AC system.
3. side pull high capacity industrial battery.
4. high strength mast, offer safter operation.
5. ISO9001, CE approved.
Main Features for seated type 3 way electric pallet stacker
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High strength mast offer safter operation.
4) Running in a high automatization and intellectualization,no pollution
- Size: 26.37
- Place of Origin: China
- Brand Name: NOELIFT
- Model Number: TCZ15
- Weight: 9710.000 kg
Brand | NOELIFT |
Model | TCZ15 |
Power type | Battery |
Operation type | Seated |
Loading capacity | 1500 |
Loading center | 600 |
Tire type front/rear | Solid PU |
Front wheel(diameter*width) | φ285×100 |
Driving wheel(D*W) | φ400×160 |
Lifting height | 4500MM |
Mast height(closed) | 3610MM |
Overhead guard height | 2240MM |
Distance from seatl to overhead guard | 1020MM |
Min under-clearance | 50MM |
Overall length | 3610MM |
Overall width | 1470MM |
Fork size | 1200×125×50MM |
Turning radius | 2350MM |
