- Size: 6.56
- Place of Origin: China
- Brand Name: NOELIFT
- Model Number: TFZ16
- Weight: 3018.000 kg

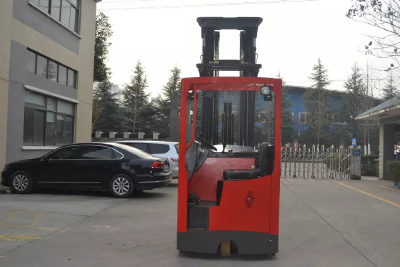

NOELIFT brand seated type electric reach truck
1600kgs load capacity, lift height 3000mm. Optional max. height 7200mm. With US CURTIS controller, Brushless AC motor and high capacity battery.PU tires. 1070mm adjustable forks.
Advantages:
1. All-wheel Brake System with standard front wheel and rear wheel brake for TFZ model, the braking effect is better. it is better to used in slip grounds and cold storage, ensure operator safer.
2. The design of high capacity mast can satisfy the high capacity requirements, with excellent mast design, can assure no any loss of load at 4500mm based on standard load center, also the load capacity at higher lift are better than before.
3. Excellent working time, with full AC system, with AC brushless motor, with high efficiency and energy-saving performance, it is can satisfy the working time based on heavy working condition.
4. Ergonomic design, easy-operation design and multi-function instrument panel, to make the operation more comfortable and convenient.
5. ISO9001 & CE certificated.
Welcome to inquiry.
- Size: 6.56
- Place of Origin: China
- Brand Name: NOELIFT
- Model Number: TFZ16
- Weight: 3018.000 kg
规格 Standard | ||||||||
1.1 | 品牌BRAND | NOELIFT | NOELIFT | NOELIFT | NOELIFT | NOELIFT | NOELIFT | |
1.2 | 型号MODEL | TFZ16 | TFZ16 | TFZ20 | TFZ20 | TFZ25 | TFZ25 | |
1.3 | 动力类型POWER TYPE | 电动BATTERY | 电动BATTERY | 电动BATTERY | 电动BATTERY | 电动BATTERY | 电动BATTERY | |
1.4 | 操作方式OPERATION TYPE | 座驾式SEATED | 座驾式SEATED | 座驾式SEATED | 座驾式SEATED | 座驾式SEATED | 座驾式SEATED | |
1.5 | 额定载荷LOADING CAPACITY | Q(kg) | 1600 | 1600 | 2000 | 2000 | 2500 | 2500 |
1.6 | 载荷中心距LOADING CENTER | C(mm) | 600 | 600 | 600 | 600 | 600 | 600 |
轮胎、轮辋 Tire、 Rim | ||||||||
2.1 | 轮胎类型 前/后 WHEEL TYPE | SOLID实芯PU/实芯PU | SOLID实芯PU/实芯PU | SOLID实芯PU/实芯PU | SOLID实芯PU/实芯PU | SOLID实芯PU/实芯PU | SOLID实芯PU/实芯PU | |
尺寸 Dimension | ||||||||
3.1 | 货叉倾角 前/后FORKS TILTING | α/β(°) | 3/5 | 3/5 | 3/5 | 3/5 | 3/5 | 3/5 |
3.2 | 标准起升高度LIFTING HEIGHT | h1(mm) | 3000 | 7500 | 3000 | 7500 | 3000 | 7500 |
3.6 | 护顶架高度OVERHEAD GUARD | h5(mm) | 2206 | 2206 | 2236 | 2236 | 2236 | 2236 |
3.12 | 叉腿离地间隙 | m1(mm) | 70 | 70 | 100 | 100 | 100 | 100 |
3.13 | 车身底板离地间隙 | m2(mm) | 50 | 50 | 80 | 80 | 80 | 80 |
3.15 | 整车长度(含叉)OVERALL LENGTH | L1(mm) | 2340 | 2330 | 2427 | 2417 | 2627 | 2617 |
3.17 | 前移距离REACH STROKE | L3(mm) | 610 | 610 | 617 | 617 | 617 | 617 |
3.18 | 前悬距 | x(mm) | 215 | 205 | 210 | 200 | 210 | 200 |
3.19 | 轴距 | y(mm) | 1426 | 1426 | 1525 | 1525 | 1725 | 1725 |
3.20 | 整车宽度OVERALL WIDTH | b1/b2(mm) | 1270 | 1270 | 1270/1290 | 1270/1290 | 1270/1290 | 1270/1290 |
3.21 | 轮距 前/后 | b3/b4(mm) | 1134/0 | 1134/0 | 1170/0 | 1170/0 | 1170/0 | 1170/0 |
3.24 | 货叉规格FORK SIZE | L/e/s(mm) | 1070×100×35 | 1070×100×35 | 1070×100×45 | 1070×100×45 | 1070×100×45 | 1070×100×45 |
3.27 | 转弯半径TURNING RADIUS | Wa(mm) | 1665 | 1665 | 1765 | 1765 | 1965 | 1965 |
动力 Power | ||||||||
5.1 | 驱动电机类型DRIVING MOTOR | AC | AC | AC | AC | AC | AC | |
5.2 | 驱动电机功率(S2 60) | kw | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
5.3 | 起升电机类型LIFTING MOTOR | AC | AC | AC | AC | AC | AC | |
5.4 | 起升电机功率(S3 15%) | kw | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 |
5.5 | 电池 电压/容量BATTERY | V/Ah | 48/420 | 48/420 | 48/560 | 48/560 | 48/700 | 48/700 |
