- Size: 35.74
- Place of Origin: China
- Brand Name: NOELIFT
- Model Number: FD120
- Weight: 14520.000 kg

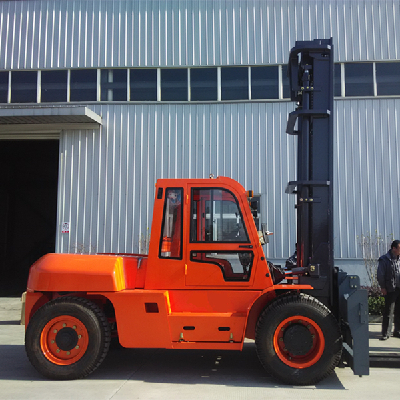

FD120 series 12tons new type diesel forklift truck
New condition forklift with China top XC 6110 or Japanese ISUZU 6BG1 diesel engine, standard mast
height is 3m, the max. lifting height is 6m.
ISO9001, CE approved.
Standard Facilities:
wide view mast, standard forks, standard seat, charging indicator, load backrest, reversing lamp, reversing buzzer, reverse mirror, lighting switch, light guard, horn,two pieces of multi-way valve, engine misses device, rear combined lamps, transparency mask of overhead guard, rib tire, hour meter, neutral indicator, air filter clog warning, cable parking brake, lifting and tilting level, hoist cylinder oil relief valve, clevis pin, light, tilt steering wheel, tilt oil channel self-locking valve, hydraulic power steering, top intake duct, hand lever, water temperature indicator, tool box, foot board rubber pad, whirlwind type air cleaner, combination instrument, hydraulic oil circuit element, hydraulic oil scale, oil-pressure warning, lock switch, brake, direction indicator lamp, warning light.
Optional Facilities:
windshield, multi-way valve, top grade seat, high air exhausting device, driving cab, warm air blower, air cleaner and silence, quencher, solid tyre, double air filter, small fan, etc.
Optional Attachments:
side shifter, fork positioner, hinged fork, carpet boom, crane jib, fork extension, lifting arm, paper roll clamp, bale clamp, etc.
- Size: 35.74
- Place of Origin: China
- Brand Name: NOELIFT
- Model Number: FD120
- Weight: 14520.000 kg
Specifications | ||||||
1 | Manufacturer | NOELIFT | ||||
2 | Model | Unit | FD100 | FD120 | ||
3 | Power type | |||||
4 | Rated capacity | kg | 10000 | 12000 | ||
5 | Load center | mm | 600 | |||
6 | Operator type | |||||
Size | ||||||
7 | Max. lift height of mast with Load-backrest | mm | 4320 | 4350 | ||
8 | Max.lift height of fork(standard) | mm | 3000 | 3000 | ||
9 | Height of mast (standard) | mm | 2840 | 2870 | ||
10 | Free lift height(standard) | mm | 180 | 180 | ||
12 | Distance from seat to overhead guard | mm | 1080 | 1020 | ||
13 | overhead guard height | mm | 2560 | 2430 | ||
14 | Length with fork | mm | 4260 | 4820 | ||
15 | Front overhang | mm | 720 | 720 | ||
16 | Rear overhang | mm | 740 | 900 | ||
17 | Wheel base | mm | 2800 | 3200 | ||
18 | The height of traction pin | mm | 520 | 520 | ||
19 | Min. ground clearance | mm | 240 | 240 | ||
20 | Overall width | mm | 2165 | 2165 | ||
21 | The distance between forks | mm | 2460/450 | 2460/450 | ||
22 | Tread(front /rear) | mm | 1600/1700 | 1600/1700 | ||
23 | Min. Turning radius(outside) | mm | 4080 | 4720 | ||
24 | Min. Turning radius(inside) | mm | 210 | 210 | ||
25 | Min. Intersecting aisle | mm | 3540 | 4020 | ||
26 | Mast tilt angle | deg | ||||
27 | Fork size | mm | 1220X175X80 | 1220X175X80 | ||
Weight | ||||||
33 | Total weight | kg | 12860 | 13520 | ||
Wheels and Tyres | ||||||
36 | Quantity of wheels | 4 X / 2 | 4 X / 2 | |||
37 | Type of tyres | Pneumatic | Pneumatic | |||
38 | Tires | Front | 9.00-24-14PR | 10.00-20-16PR | ||
39 | Rear | 9.00-24-14PR | 10.00-20-16PR | |||
40 | Driving Brake | hydraumatic pedal | ||||
41 | Parking Brake | Mechanical manual |
