Product description

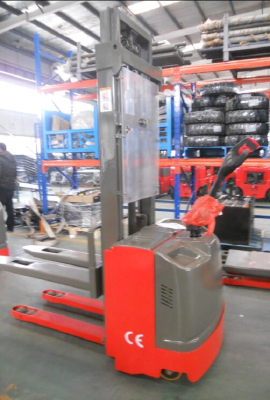

NOELIFT brand 2t / 4400LBS electric pallet stacker
Main features for 2000kg electric pallet stacker
TB series steering wheel pallet stacker, rated load capacity: 1500kg, Max. lift height: 4500mm, used for single face pallet;
1. With USA Curtis controller, easier to operation;
2. Electronic type braking;
3. To use intelligent charger,auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectivly;
4. Speed limited for high position, to aviod the possibility of products' overturning when high speed in high position;
5. High strength overhead guard to protect the operator.
- Size: 1
- Place of Origin: China
- Brand Name: NOELIFT
- Model Number: TB25
- Weight: 1000.000 kg
- :
- :
TB series electric pallet stacker
Description | ELECTRIC PALLET STACKER | |||||||||
Model | TB10 -16 | TB10 -25 | TB10 -30 | TB10 -35 | TB15 -25 | TB15 -30 | TB20 -16 | TB25 -16 | ||
Load capacity kg | 1000 | 1000 | 1000 | 1000 | 1500 | 1500 | 2000 | 2000 | ||
Load center mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | ||
Max. lifting height mm | 1600 | 2500 | 3000 | 3500 | 2500 | 3000 | 1600 | 1600 | ||
Wheel type | Polyurethane solid tire | |||||||||
Pedal length mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | ||
(LxW)Fork size mm | 1150*190 | |||||||||
Width of forks(aptotic) mm | 675 | 675 | 675 | 675 | 675 | 675 | 675 | 675 | ||
Overall length mm | 2023 | 2023 | 2023 | 2023 | 2023 | 2023 | 2023 | 2023 | ||
Overall width mm | 850 | 850 | 850 | 850 | 850 | 850 | 850 | 850 | ||
Overall height mast closed mm | 2080 | 1795 | 2040 | 2290 | 1795 | 2040 | 2080 | 2080
| ||
