- Size: 1
- Place of Origin: China
- Brand Name: NOELIFT
- Model Number: FGL30
- Weight: 1500.000 kg
Product description

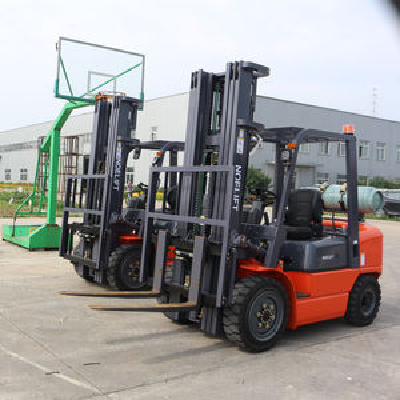

LPG/Gasoline forklift
3t load LPG/gasoline forklift with Nissan engine or China top GQ-4Y engine, duplex mast with 3m lifting height, pneumatic tires.
1, Integrated overhead guard by punching
2, Energy-efficient hydraulic system
3, Buffer device for transverse steering axle
4, Overhead dual air filters
5, ISO9001, CE approved
FAQ
Q: Are you a trader or manufacturer?
A: We are manufacture, we have our own factory.
Q: Why should i choose you?
A: Firstly, as a comprehensive forklift machinery manufacturers, we can offer you competitive price. In fact we have dealed with numbers of client friends. furthermore, our company has equipped with a group of diligent, honest and enterprising staff. So we are sure that we can make quick responseto your questions all the time. Actually, most problems can be solved within 10 hrs. lastly, we are a member of Trade Assurance service in alibaba.com. that is new service provided by alibaba, which can provides buyers with a number of trade safeguards protect buyers’ payment to suppliers, and to ensure suppliers fulfill their obligations regarding order delivery time and product quality.
Q: Which payment terms can we accept?
A: Normally we can work on L/C , T/T, Western Union and MoneyGram
Q: How long will our price be valid?
A: Basically, our price remains stable within 30days. And we only adjust our price on the two issues, i.e. the rate of USD to RMB and the vary of production price of the forklift.
Q:How can I get the after-sales service?
A: The global service network hasn’t been constructed, but you can contact with us if you have questions or need professional support, we will try to solve your problem in 24hrs, and arrange the delivery of the essential spare parts.
- Size: 1
- Place of Origin: China
- Brand Name: NOELIFT
- Model Number: FGL30
- Weight: 1500.000 kg
Product parameter
Model | FGL20T | FGL25T | FGL30T | FGL35T | |||||||
Power type | Gasoline/LPG | ||||||||||
Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | ||||||
Load center | mm | 500 | |||||||||
Operator type | Seated | ||||||||||
Tyre type | Front/Rear | pneumatic | |||||||||
Number of wheels(X=driven)) | Front/Rear | 2×/2 | |||||||||
Lifting height | mm | 3000 | |||||||||
Free lift height | mm | 140 | 145 | 150 | |||||||
Fork size | LxWxT | mm | 920×122×40 | 1070×122×40 | 1070×125×45 | 1070×130×45 | |||||
Mast tilt range | F/R | deg | 6/12 | ||||||||
Overall Length(Without fork) | mm | 2513 | 2583 | 2698 | 2725 | ||||||
Overall width | mm | 1150 | 1225 | 1225 | |||||||
Mast lowered height | mm | 1995 | 2070 | 2160 | |||||||
Overhead guard height | mm | 2070 | 2090 | ||||||||
Speed | Travel | Full load | km/h | 17 | 18 | ||||||
No load | km/h | 19.5 | 19.5 | ||||||||
Lifting | Full load | mm/s | 570 | 450 | 380 | ||||||
No load | mm/s | 600 | 500 | 450 | |||||||
Lowering | Full load | mm/s | 450 | 420 | |||||||
No load | mm/s | 550 | 500 | 460 | |||||||
Self weight | kg | 3320 | 3680 | 4280 | 4750 | ||||||
Tyres | Spec | Front | 7.00-12-12PR | 28*9-15-12PR | |||||||
Rear | 6.00-9-10PR | 6.50-10-10PR | |||||||||
Brake type | Driving brake | Hydraulic | |||||||||
Parking brake | Mechanical-hand brake | ||||||||||
Battery | Voltage/Capacity | V/AH | 12/100 | ||||||||
Engine | Model | NISSAN K25 | |||||||||
Rated output/r.p.m | Kw/rpm | 44.2/2500 | |||||||||
Rated torque/r.p.m | N.m/rpm | 186.2/1600 | |||||||||
Forklift Standard Configuration
Fork | Tool | Transmission oil dipstick | Backrest |
Overhead guard | Horn | Reversing light | Hour meter |
Oil lever gauge | Charging indicator | Water temperature gauge | Oil pressure alarm |
Steering indicator | Wide view mast | Standard seat | Front lamp |
Rear combined light | Redal pad | Overhead guard rain cover | Transmission oil filter element |
Backward buzzer | Traction pin | Hydraulic oil return circuit filer element | Neutral gear safety swith |
Control valve | Air inletting device | Liftingand tilting operation lever | Cable type packing brake |
Hydraulic oil dipstick | Preheating indicator | Whoolley hydraulicpowered steering | Lifting oil circuit flow regulator |
Durable tread tyre | Whirlwind air cleaner | Tilting adjustale steering column | Engine automatic preheat |
Forklift options
Cabin | Speedometer | Fire extinguisher | Solid tyre |
Rear working lamp | Auxiliary pipline | Transmission oil temperature gauge | Customer made color |
Suspension seat | Warm air blower | High air exhaustiong device | Tilt cylinder jacket |
Optional attachments
Sideshifter Tipping multi-purpose clamp
Fork positioner Drum clamp
Paper roll clamp Turnaload
Push / pull Rotator
Carton clamp Carpet boom
Turnafork Single double pallet handlers
Double wide sideshifters Turnaforks
Glass handler Tobacco carton clamp
Fork clamp Block clamp
Bale clamp Fork
